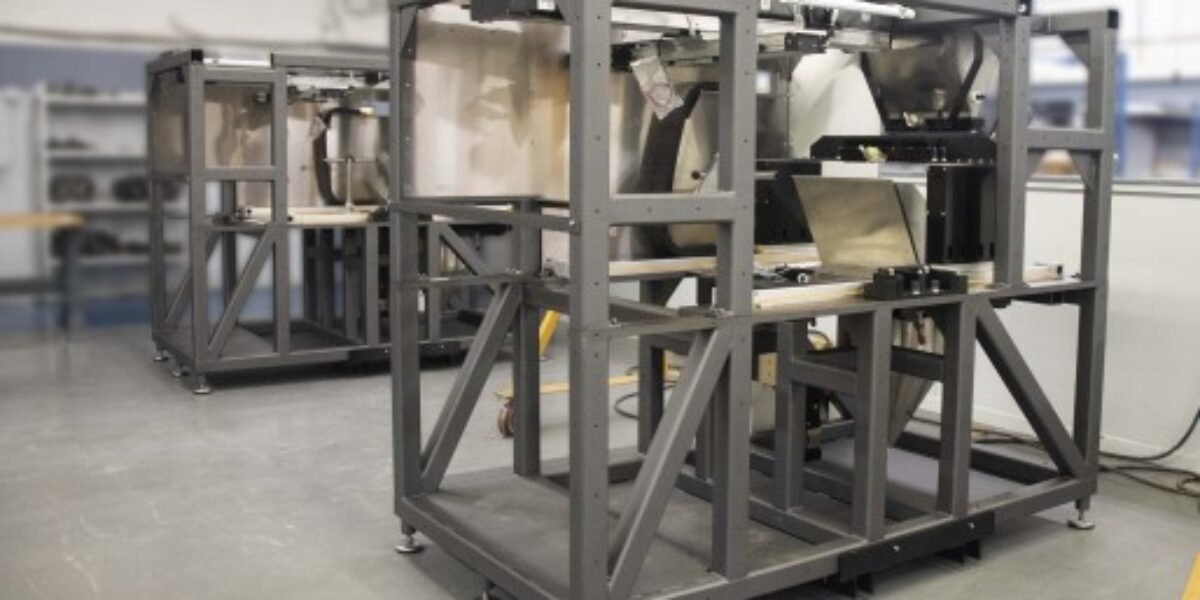

Machine frames are often the backbone of complex OEM equipment. They support motion systems, process hardware, enclosures, panels, tooling, guards, access points, and critical interfaces that the rest of the machine depends on.
That is why DFMA for machine frames needs more than a standard design check. A frame may look straightforward in CAD, but construction method, tolerance strategy, fixture planning, weld requirements, inspection approach, and assembly sequence can all affect cost, quality, throughput, and repeatability.
For OEMs developing equipment frames, sheet metal enclosures, welded structures, fabricated bases, and large mechanical assemblies, DFMA connects design intent with production reality. The goal is to support functional requirements while reducing avoidable manufacturing operations, post-processing, inspection burden, and assembly risk.
Why Machine Frame DFMA Matters
Machine frames carry production risk because they are large, structural, and tied to many other parts of the system. They may need to hold alignment, support load, manage vibration, fit within a tight envelope, meet safety requirements, or maintain precision across multiple mounting points.
Small design choices can create expensive downstream effects. A tight tolerance on a large, welded structure may require post-weld machining. A datum scheme that works in CAD may be difficult to inspect on a large frame. A construction method that works for a prototype may become inefficient as volume increases.
That is why machine frame design for manufacturing should connect the frame’s functional requirements to the production method early, before construction choices, tolerances, fixtures, and inspection plans become harder to change.
